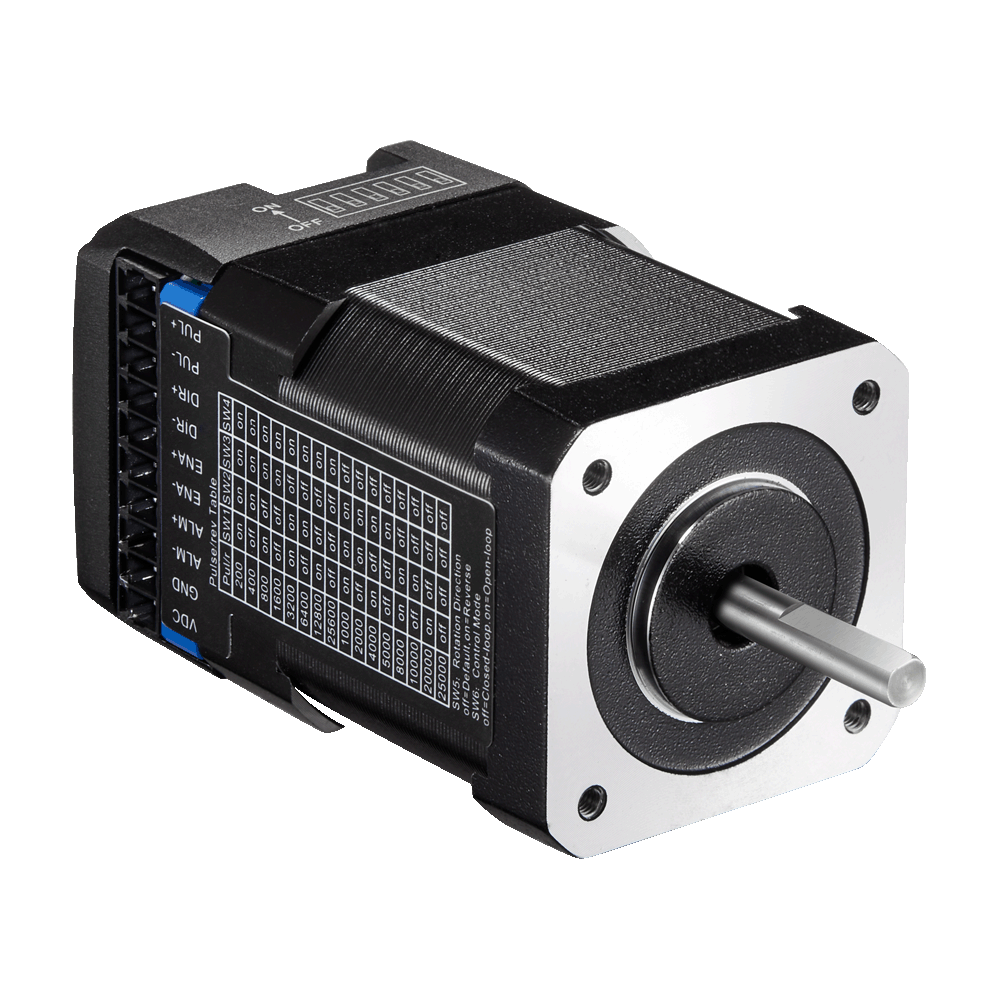

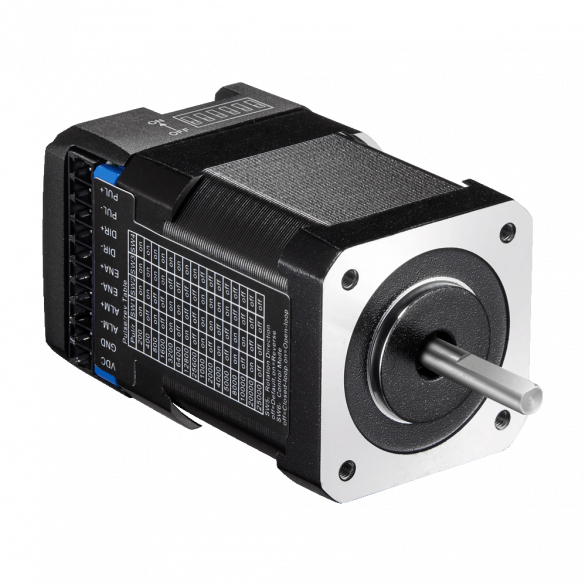

Leadshine has developed advanced motion control solutions, and their closed loop stepper systems offer noticeable improvements compared with traditional stepper motors. These systems combine the simplicity of stepper motors with real-time feedback, which enhances accuracy and reliability in automated applications. A typical example is their iCS-1703 model, a NEMA17 motor with 0.3N.m torque, designed for low-speed performance and precise control.
Enhanced Low-Speed Performance
The closed loop stepper motor design provides superior performance at low speeds, particularly under 60RPM. With integrated feedback from a 14-bit single-turn incremental encoder, the iCS-1703 ensures stable rotation without missing steps. Users benefit from smoother motion and reduced vibration, which is essential for applications such as 3D printing, CNC machines, and automated assembly lines. Additionally, soft-start technology prevents sudden jumps when powered on, further improving operational safety.
Flexible Control Options
Another advantage of a closed loop stepper motor system is its versatile control capability. The iCS-1703 closed loop stepper motor can be driven using pulse & direction (PUL & DIR) or CW & CCW (double-pulse) control methods. It also provides three digital inputs and one optically isolated digital output, making integration with PLCs, EtherCAT, or other industrial automation networks straightforward. In addition, RS232 connectivity enables direct communication with Leadshine software for configuration, real-time monitoring, and performance optimization.
Reliability and System Protection
Feedback in a closed loop stepper motor reduces the risk of missed steps, stalls, and overshoot. This improves both reliability and efficiency while minimizing maintenance. The system continuously monitors motor position and automatically compensates for any discrepancies, ensuring consistent output even in demanding industrial environments. These features, combined with Leadshine’s fast delivery and quality control, make it a practical choice for manufacturers seeking cost-effective and reliable solutions.
Conclusion: Advantages Summarized
In summary, closed loop stepper systems from Leadshine, such as the iCS-1703, offer several technical advantages. They improve low-speed performance, provide versatile control options, and enhance reliability through continuous feedback. These benefits make them suitable for various automated applications where precision and stability are required, demonstrating why Leadshine remains a reliable provider of advanced motion control solutions.
